Bar 2.1 Deep Bass

Bring the power

An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good.

Surround yourself with sound

JBI Surround Sound instantly brings movies, games, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers.

All about the bass

Why just listen to the bass when you can experience it? The 6.5'' wireless subwoofer delivers deep, thrilling sound.

Features

JBL Bar 2.1 Deep Bass Visit the movies, from your sofa - Image

Visit the movies, from your sofa

Get the popcorn ready. Built-in Dolby Digital gives you an authentic cinematic experience in your home.

Stream it all

Not in the mood for a film? No problem. With the JBI Bar 2.1 Deep Bass, you can also enjoy wireless music streaming via Bluetooth from your mobile or tablet.

Make a connection

Connecting JBI Surround Sound could not be easier. The HDMI or Optical cable connection is super simple to set up and use.

Specifications and Support

Description

Big Thrilling Bass

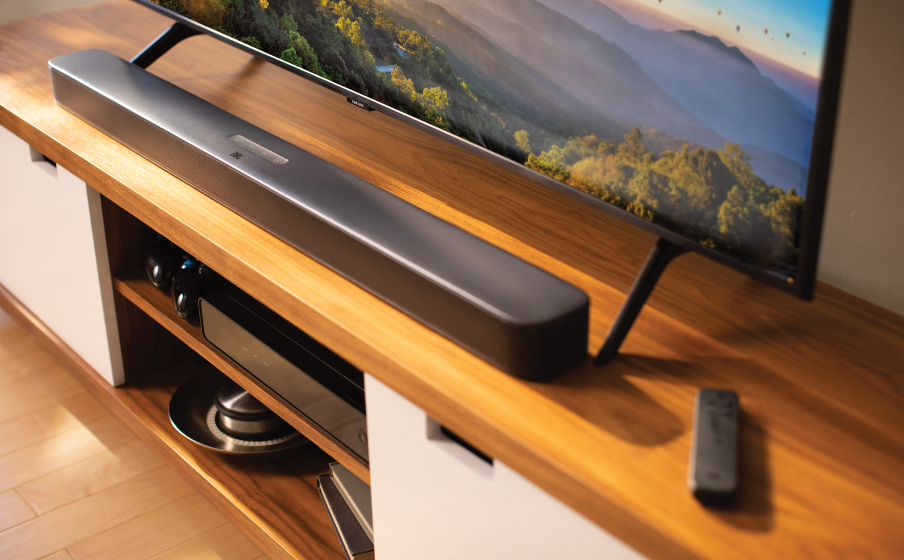

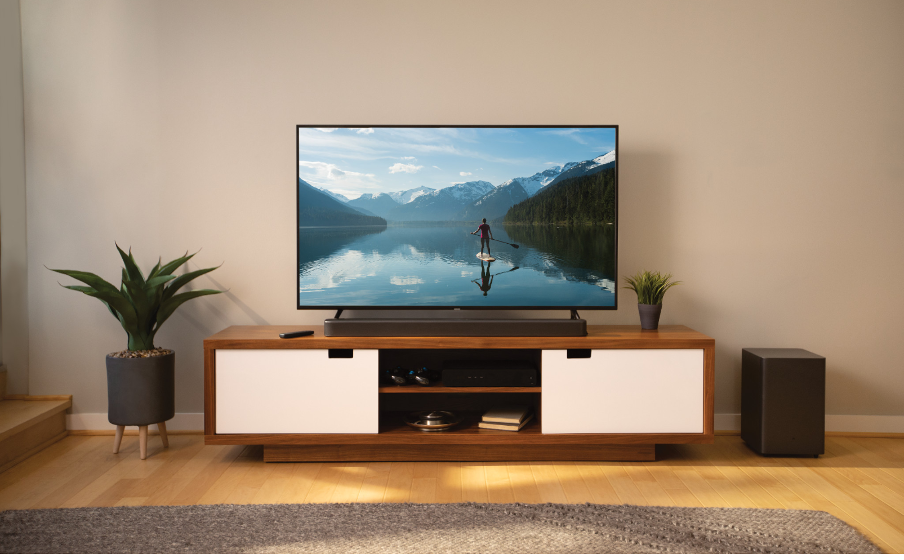

The elegant JBI BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBI Surround Sound modes. Its room filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full range drivers, two 1” tweeters, and JBI engineered 6.5” subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBI theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.

General Specifications

Model: Bar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)
Power supply: 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max. @THD 1%): 300W

Output power (Max. @THD 1%):

2 x 50W (Soundbar); 200W (Subwoofer)

Transducer: 4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)
Soundbar and Subwoofer standby power: <0.5W
Operating temperature: 0°C - 45°C
HDMI Video output (With Audio return channel): 1
HDMI version: 1.4

Audio Specifications

HDMI Video input: 1
Frequency response: 40Hz - 20KHz
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Dimensions (W x H x D):

965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar);

240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)

Weight: 2.16 kg (Soundbar);

5.67 kg (Subwoofer)

Packaging dimensions (W x H x D): 1045 x 310 x 405mm
Packaging weight (Gross weight): 10.4kg

Control and Connection Specifications

USB port: Type A
USB rating: 5V DC/ 0.5A
Supporting file format: mp3, wav
MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16KHz - 48 KHz
MP3 bitrate: 80kbps - 320kbps
WAV sample rate: 16KHz - 48 KHz
WAV bitrate: Up to 3000kbps
Bluetooth version: 4.2
Bluetooth profile: A2DP V1.3, AVRCP V1.5
Bluetooth frequency range: 2402MHz-2480MHz
Bluetooth Max. transmitting power: <10dBm (EIRP)
Modulation Type: GFSK, π/4 DQPSK, 8DPSK
5G Wireless frequency range: 5736.35 - 5820.35MHz
5G Max. transmitting power: <9dBm (EIRP)
Modulation Type: π/4 DQPSK

What's in The Box?

Soundbar
Wireless subwoofer
Remote control with batteries
Power cords (up to 8pcs depending on region SKUs)
HDMI cable
Wall-mount bracket kit with screws
Quick start guide
Warranty card
Safety sheet
